Our Wide Range of
| Engine | Power: 180 HP @ 2500 rpm Torque: 660Nm @ 1200~1900 rpm | ||
| Clutch | Single plate dry type - 15” Axial spring clutch | ||
| Gear Box | Synchromesh - ZF 9S1110 - Crawler-12.73 I - 8.83 | ||
| Prop Shaft | 1 Drive shaft + 1 Inter-axle shaft, 1710 HD Series | ||
| Rear Axle | Fully floating single speed (MT 1497) – RAR 6.5: 1 | Fully floating single speed (MT 1497) – RAR 6.83: 1 | |
| Front Axle | I’ section, non driven, Reverse Elliot type | ||
| Suspension | Front – Multi-leaf Spring | Rear V-rod Bogie Suspension | Rear NRS Semi Elliptical multi Leaf |
| Frame Dimensions | Bolted construction with constant width over chassis. 228 x 76 x 6 mm | Bolted construction Cranked chassis Frame -279 x 90 x 8mm | |
| Steering | Integral power steering | ||
| Brakes | Dual circuit, full air S cam. Parking brakes on rear wheels only | ||
| Fuel Tank | 200 (Plastic) | ||
| Electrical | 24V ; 110 AH battery X 2 nos. 85A alternator capacity | ||
| Tyres | 10 X 20 – 16 PR Cross ply and Radial Option | ||
| Max Speed | 60 Kmph | ||
| Gradeability | 9S – NRS - 38.7% | 9S – BGS – 42.2% | |
| Cab | G45 Day cab | ||
| Tipping Cylinder & PTO | Stage : 3 Stage Cylinder 16 Box PTO Ratio : 0.952 | ||
| Engine | H series turbocharged intercooled, CRS BS IV engine |
| Maximum power | 180 HP @ 2400 rpm |
| Maximum torque | 660 Nm @ 1200-1900 rpm |
| Clutch | 380 mm dia axial clutch with ceramic lined disc and booster actuation |
| Transmission | "9 speed gear box with FGR 8.83:1 and CGR 12.73:1" |
| Front axle | Forged 'I' section, Reverse Elliot type |
| Rear axle | Fully floating, single speed, hypoid with 6.83:1 RAR |
| Frame | 279 X 90 X 8 mm bolted frame with 6 cross members |
| Suspension | "Front: semi-elliptic, multileaf with anti-roll bar and shock absorbers Rear: heavy duty bogie suspension with V-rod" |
| Brakes | Full air, dual line |
| Parking brakes | Pneumatic, flick valve operated on front and rear wheels |
| Fuel tank capacity | 208 litres cross-linked polymer tank |
| Battery | 24V (2 X 12V), 150 Ah (for AC) |
| Tyres | 10 X 20 - 16PR |

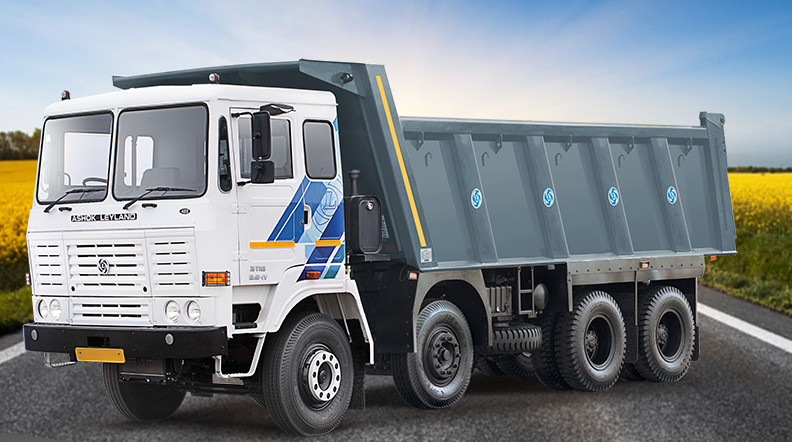

| Model | CT 3118 HD | |
| Engine | Power: 180 HP @ 2500 rpm Torque: 660Nm @ 1200~1900 rpm | |
| Clutch | Single plate dry type - 15” Axial spring clutch | |
| Gear Box | Synchromesh - ZF 9S1110 - Crawler-12.73 I - 8.83 | |
| Prop Shaft | 3nos - C2040 series - Coupling shafts & Drive Shaft with serrated and Interaxle shaft | |
| Rear Axle | Fully floating single speed (MT 1497) – RAR 6.17: 1 | |
| Front Axle | I’ section, non-driven, Reverse Elliot type | |
| Suspension | Front – Multi-leaf Spring - Shock Absorbers: Spring width – 90 mm | Rear Inverted Semi-elliptic multi leaf with V-Rod |
| Frame Dimensions | Bolted construction Cranked chassis Frame -279 x 90 x 8mm | |
| Steering | Integral power steering | |
| Brakes | Dual circuit, full air S cam. Parking brakes on rear wheels only | |
| Fuel Tank | 300 (Plastic) Rectangle shape | |
| Electrical | 24V ; 110 AH battery X 2 nos. 85A alternator capacity | |
| Tyres | 10 X 20 – 16 PR Cross ply and Radial Option | |
| Max Speed | 60 Kmph | |
| Gradeability | 29.5% | |
| Cab | New G45 Day cab | |
| Tipping Cylinder & PTO | Front End - 4 Stage) PTO Ratio: 0.952:1 | |
| Engine | N series turbocharged, intercooled, CRS BS IV engine |
| Maximum power | 230 HP @ 2000 - 2200 rpm |
| Maximum torque | 800 Nm @ 1200 - 2000 rpm |
| Clutch | 380 mm dia with clutch booster and ceramic lined disc |
| Transmission | 9 speed with FGR 8.83:1 and CGR 12.73:1 |
| Front axle | Forged 'I' section, Reverse Elliot type |
| Rear axle | Fully floating, single speed, hypoid with hub reduction RAR 7.20:1 |
| Frame | 279 X 90 X 8 mm joggled bolted frame |
| Suspension | "Front: semi-elliptic, multileaf with anti-roll bar and shock absorbers Rear: Heavy-duty bogie suspension with V-rod" |
| Brakes | Full air, dual line |
| Parking brakes | Pneumatic, flick valve operated on front and rear forward axles |
| Fuel tank capacity | 208 litres cross-linked polymer tank |
| Battery | 24V (2 X 12V) 150 Ah (for AC), 110 Ah (for Non-AC) |
| Tyres | "11X20 - 16PR Optional: 11R20 16PR radial / 11X20 18PR Mine lug" |
| Engine | N series 230 HP turbocharged intercooled, CRS |
| Maximum power | 230 HP @ 2000 - 2200 rpm |
| Maximum torque | 800 Nm @ 1200 - 2000 rpm |
| Clutch | 380 mm dia with ceramic lined disc and booster actuation |
| Transmission | "9 speed gear box with FGR 8.83:1 and Crawler 12.73:1" |
| Front axle | Twin-steerable, forged 'I' section, Reverse Elliot type |
| Rear axle | Fully floating, single speed, hypoid with 5.83:1 RAR |
| Frame | 279 X 90 X 8 mm joggled bolted frame, adequately reinforced with internal flitches |
| Suspension | "Front: semi-elliptic, multileaf with anti-roll bar and shock absorbers Rear: Heavy-duty bogie suspension with V-rod" |
| Brakes | Full air, dual line with ABS and ASA |
| Parking brakes | Pneumatic, flick valve operated on second front axle and on first rear axle |
| Fuel tank capacity | 300 litres cross-linked polymer tank |
| Battery | 24V (2 X 12V) 150 AH |
| Tyres | "11X20 - 16 PR Cross-ply (Optional - 11R20 - 16 PR Radial)" |
| Engine | H series CRS engine with iEGR technology |
| Maximum power | 180 HP (132 kW) @ 2400 rpm |
| Maximum torque | 660 Nm @ 1200-1900 rpm |
| Clutch | Improved heavy duty - 380 mm dia with ceramic facing and higher clamp load, clutch booster assisted |
| Transmission | 8S1110 – 8 speed gear box. I gear ratio (FGR) 8.83:1 |
| Front axle | Forged I beam - Reverse Elliot type |
| Rear axle | Fully floating, single speed hypoid, with 6.17:1 RAR |
| Frame | Ladder type frame - C section - 275X75X7 mm of high strength steel |
| Suspension | Semi elliptic multileaf in front and non-reactive suspension (NRS) in rear |
| Brakes | Full air dual line with ABS |
| Parking brakes | Pneumatic - flick valve operated on rear wheels only |
| Fuel tank capacity | 400 litres cross-linked polymer tank |
| Battery | 2 X 12 V |
| Tyres | 10X20 - 16 PR radial |
| Engine | H series turbocharged intercooled, CRS BS IV engine |
| Maximum power | 180 HP @ 2400 rpm |
| Maximum torque | 660 Nm @ 1200-1900 rpm |
| Clutch | 380 mm dia axial clutch with ceramic lined disc and booster actuation |
| Transmission | "9 speed gear box with FGR 8.83:1 and CGR 12.73:1" |
| Front axle | Forged 'I' section, Reverse Elliot type |
| Rear axle | Fully floating, single speed, hypoid with 6.83:1 RAR |
| Frame | 279 X 90 X 8 mm bolted frame with 6 cross members |
| Suspension | "Front: semi-elliptic, multileaf with anti-roll bar and shock absorbers Rear: heavy duty bogie suspension with V-rod" |
| Brakes | Full air, dual line |
| Parking brakes | Pneumatic, flick valve operated on front and rear wheels |
| Fuel tank capacity | 208 litres cross-linked polymer tank |
| Battery | 24V (2 X 12V), 150 Ah (for AC) |
| Tyres | 10 X 20 - 16PR |
| Engine | H series CRS engine with iEGR technology |
| Maximum power | 180 HP @ 2400 rpm |
| Maximum torque | 660 Nm @ 1200-1900 rpm |
| Clutch | 380 mm dia, single plate dry type with clutch booster |
| Rear axle | Fully floating, single speed hypoid, with 5.83:1 RAR |
| Rear axle | Fully floating, single speed hypoid, with 5.83:1 RAR |
| Frame | 275 X 90 X 6 mm |
| Suspension | Semi-elliptic multileaf with shock absorbers in front and equalizer link rod in rear |
| Brakes | Full air dual line with ABS |
| Parking brakes | Pneumatic flick valve operated on rear wheels only |
| Fuel tank capacity | 400 lts cross link polymer |
| Battery | 2 X 12V |
| Tyres | 10.00X20 - 16PR radial |
| Engine | H series 4 cylinder CRS |
| Maximum power | 130 HP @ 2400 rpm |
| Maximum torque | 450 Nm @ 1250-2000 rpm |
| Clutch | 330 mm dia single plate dry type - hydraulic actuation and clutch booster |
| Transmission | 6 speed gearbox with overdrive |
| Front axle | I section reverse elliot |
| Rear axle | Fully floating, single reduction hyphoid axle |
| Frame | 204 x 62 x 7 mm, ladder type with bolted construction |
| Suspension | "Front: Parabolic springs Rear: Semi-elliptical multileaf springs" |
| Brakes | Full air, dual line, S-cam brakes with ABS |
| Parking brakes | Spring actuated, pneumatic parking brakes on rear wheels only |
| Fuel tank capacity | 208 litres |
| Battery | 2 x 12V / 75Ah |
| Tyres | 8.25 R20 - 16 PR Radial tyres |
| Engine | H series 4 cylinder CRS |
| Maximum power | 130 HP @ 2400 rpm |
| Maximum torque | 450 Nm @ 1250-2000 rpm |
| Clutch | 330 mm dia single plate dry type - hydraulic actuation |
| Transmission | Synchromesh 6 speed gearbox with overdrive |
| Front axle | I section reverse elliot |
| Rear axle | Heavy duty hyphoid axle |
| Frame | All steel ladder type with bolted construction |
| Suspension | Shackle-ended multileaf springs |
| Brakes | Full air, dual line, S-cam brakes |
| Parking brakes | Spring actuated, pneumatic parking brakes on rear wheels only |
| Fuel tank capacity | 200 litres |
| Battery | 12 V - 100 Ah |
| Tyres | 9.00R20 16 PR radial tyres |
| Engine | H series 4 cylinder CRS |
| Maximum torque | 450 Nm @ 1250-2000 rpm |
| Clutch | 330 mm dia single plate dry type - hydraulic actuation |
| Transmission | Synchromesh 6 speed gearbox with overdrive |
| Front axle | I section reverse elliot |
| Rear axle | Heavy duty hyphoid axle |
| Frame | All steel ladder type with bolted construction |
| Suspension | Shackle-ended multileaf springs |
| Brakes | Full air, dual line, S-cam brakes |
| Parking brakes | Spring actuated, pneumatic parking brakes on rear wheels only |
| Fuel tank capacity | 200 litres |
| Battery | 12 V - 100 Ah |
| Tyres | 8.25 R 20 - 16 PR radial tyres |
| Engine | H series 4 cylinder CRS |
| Maximum power | 130 HP @ 2400 rpm |
| Maximum torque | 450 Nm @ 1250-2000 rpm |
| Clutch | 330 mm dia single plate dry type - hydraulic actuation and clutch booster |
| Transmission | 6 speed gearbox with overdrive |
| Front axle | I section reverse elliot |
| Rear axle | Fully floating, single reduction hyphoid axle |
| Frame | 200 x 60 x 5 mm, ladder type with bolted construction |
| Suspension | "Front: Parabolic springs Rear: Semi-elliptical multileaf springs" |
| Brakes | Full air, dual line, S-cam brakes |
| Parking brakes | Spring actuated, pneumatic parking brakes on rear wheels only |
| Fuel tank capacity | 208 litres |
| Battery | 2 x 12V / 75Ah |
| Tyres | 235 / 75R 17.5 tubeless radials |
| Engine model | H Series 4 cylinder CRS diesel engine |
| Emission Norms | BS IV with i-EGR |
| Maximum Power | 75 kW (100 HP) @ 2400 rpm |
| Maximum Torque | 320 Nm @ 1200 - 2000 rpm |
| Clutch | 280 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Parabolic Leaf with Dampers & Anti Roll bar |
| Rear Suspension | Parabolic leaf spring with Dampers |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | No |
| Electricals | 12 volts, 75 Ah; Alternator capacity - 65 Amps |
| Tyres | 7.50 x 16 -16 PR / 235/75 R 17.5 |
| Fuel tank | 60 / 100 Litres |
| Engine model | H Series 6 cylinder CRS diesel engine |
| Emission Norms | BS IV with i-EGR |
| Maximum Power | 95 kW (127 HP) @ 2400 rpm |
| Maximum Torque | 450 Nm @ 1400 - 1600 rpm |
| Clutch | 330 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Semi Elliptical Multi leaf Spring (Parabolic leaf spring for 4900 & 5200 Only) |
| Rear Suspension | Semi Elliptical Multi leaf Spring (Parabolic leaf spring for 4900 & 5200 Only) |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | Yes |
| Electricals | 12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
| Tyres | 7.50 x 16 – 16 PR Cross ply / 8.25 x 16 – 16 PR Cross ply |
| Fuel tank | 115 Litres |
| Engine model | H Series 4 cylinder CNG Engine |
| Emission Norms | BS IV with EGC |
| Maximum Power | 106 kW (144 HP) @ 2400 rpm |
| Maximum Torque | 450 Nm @ 1600 - 2000 rpm |
| Clutch | 330 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Parabolic leaf spring |
| Rear Suspension | Parabolic leaf spring |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | No |
| Electricals | 24V, 150Ah Battery, 85A Alternator |
| Tyres | 235 R 17.5 – tubeless radials |
| CNG Capacity | 360 Water litre capacity |
| Engine model | H Series 4 cylinder CRS diesel engine |
| Emission Norms | BS IV with i-EGR |
| Maximum Power | 95 kW (127 HP) @ 2400 rpm |
| Maximum Torque | 450 Nm @ 1400 - 1600 rpm |
| Clutch | 330 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Semi Elliptical Multi leaf Spring |
| Rear Suspension | Semi Elliptical Multi leaf Spring |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | Yes |
| Electricals | 12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
| Tyres | 8.25 x 20 – 16 PR Cross ply |
| Fuel tank | 165 Litres |
| Engine model | H Series 4 cylinder CRS diesel engine |
| Emission Norms | BS IV with i-EGR |
| Maximum Power | 95 kW (127 HP) @ 2400 rpm |
| Maximum Torque | 450 Nm @ 1400 - 1600 rpm |
| Clutch | 330 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Semi Elliptical Multi leaf Spring (Parabolic leaf spring for 4900 & 5200 Only) |
| Rear Suspension | Semi Elliptical Multi leaf Spring (Parabolic leaf spring for 4900 & 5200 Only) |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | Yes |
| Electricals | 12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
| Tyres | 12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
| Tyres | 7.50 x 16 – 16 PR Cross ply / 8.25 x 16 – 16 PR Cross ply |
| Fuel tank | 115 Litres |
| Engine model | H Series 4 cylinder CNG Engine |
| Emission Norms | BS IV with EGC |
| Maximum Power | 106 kW (144 HP) @ 2400 rpm |
| Maximum Torque | 450 Nm @ 1600 - 2000 rpm |
| Clutch | 330 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Parabolic leaf spring |
| Rear Suspension | Parabolic leaf spring |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | No |
| Electricals | 24V, 150Ah Battery, 85A Alternator |
| Tyres | 235 R 17.5 – tubeless radials |
| CNG Capacity | 360 Water litre capacity |
| Engine model | H Series 4 cylinder CNG Engine |
| Emission Norms | BS IV with EGC |
| Maximum Power | 106 kW (144 HP) @ 2400 rpm |
| Maximum Torque | 450 Nm @ 1600 - 2000 rpm |
| Clutch | 330 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Semi elliptic Multi leaf spring |
| Rear Suspension | Semi elliptic Multi leaf spring |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | No |
| Electricals | 24V, 150Ah Battery, 100A Alternator |
| Tyres | 9.00 X 20 – Cross ply |
| CNG Capacity | 480 Water litre capacity |
| Engine model | H Series 4 cylinder CRS diesel engine |
| Emission Norms | BS IV with i-EGR |
| Maximum Power | 95 kW (127 HP) @ 2400 rpm |
| Maximum Torque | 450 Nm @ 1400 - 1600 rpm |
| Clutch | 330 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Semi Elliptical Multi leaf Spring |
| Rear Suspension | Semi Elliptical Multi leaf Spring |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | Yes |
| Electricals | 12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
| Tyres | 8.25 x 20 – 16 PR Cross ply |
| Fuel tank | 165 Litres |
| Engine model | H Series 6 cylinder CRS diesel engine | ||
| Emission Norms | BS IV with i-EGR | BS IV with SCR | |
| Maximum Power | 132 kW (177 HP) @ 2400 rpm | 123 kW (165 HP) @ 2400 rpm | 165 kW (221 HP) @ 2400 rpm |
| Maximum Torque | 660 Nm @ 1200 - 1900 rpm | 550 Nm @ 1200 - 1800 rpm | 800 Nm @ 1400 - 2100 rpm |
| Clutch | 380 Diaphragm with Booster | 14” Axial clutch with Hydraulic Actuation | 380 Diaphragm with Booster |
| Transmission | 6 Speed Synchromesh overdrive gearbox | ||
| Front Suspension | Rubber ended leaf spring / Air | ||
| Rear Suspension | Semi Elliptical Multi leaf Spring / Air | ||
| Steering | Integral power steering | ||
| Brakes | Full air dual line with ABS | ||
| Auxiliary brake | HB 1200 – Electromagnetic retarder (Optional for AC Variant) | ||
| Parking brakes | Flick Valve operated hand brake on rear wheel only | ||
| AC option | Yes, Engine Direct driven | ||
| Electricals | 24V, 200Ah Battery, 85A Alternator | 24V, 150Ah Battery, 55A Alternator | 24V, 200Ah Battery, 85A Alternator |
| Tyres | 10R20 tube radials (or) 295/80 R 22.5 tubeless radials | ||
| Fuel tank | 350 Litres | ||
| Engine model | H Series 6 cylinder CRS diesel engine | |
| Emission Norms | BS IV with i-EGR | BS IV with SCR |
| Maximum Power | 132 kW (177 HP) @ 2400 rpm | 123 kW (165 HP) @ 2400 rpm |
| Maximum Torque | 660 Nm @ 1200 - 1900 rpm | 550 Nm @ 1200 - 1800 rpm |
| Clutch | 380 Diaphragm with Booster | 14” Axial clutch with Hydraulic Actuation |
| Transmission | 6 Speed Synchromesh overdrive gearbox | |
| Front Suspension | Rubber ended leaf spring / Air | |
| Rear Suspension | Semi Elliptical Multi leaf Spring / Air | |
| Steering | Integral power steering | |
| Brakes | Full air dual line with ABS | |
| Auxiliary brake | HB 1200 – Electromagnetic retarder (Optional for AC Variant) | |
| Parking brakes | Flick Valve operated hand brake on rear wheel only | |
| AC option | Yes, Engine Direct driven | |
| Electricals | 24V, 200Ah Battery, 85A Alternator | 24V, 150Ah Battery, 55A Alternator |
| Tyres | 10R20 tube radials (or) 295/80 R 22.5 tubeless radials | |
| Fuel tank | 350 Litres | |
| Engine model | H Series 6 cylinder CRS diesel engine |
| Emission Norms | BS IV with i-EGR |
| Maximum Power | 118 kW (158 HP) @ 2400 rpm |
| Maximum Torque | 550 Nm @ 1200 - 1900 rpm |
| Clutch | 14” Axial clutch with Mechanical Actuation |
| Transmission | 6 Speed Synchromesh overdrive gearbox |
| Front Suspension | Semi Elliptical Multi leaf Spring |
| Rear Suspension | Semi Elliptical Multi leaf Spring |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | Exhaust Brake (optional) |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | No |
| Electricals | 24V, 150Ah Battery, 55A Alternator |
| Tyres | 10R20 tube radials (or) 295/80 R 22.5 tubeless radials |
| Fuel tank | 165 Litres / 239 Litres |
| Engine model | H Series 6 cylinder CRS diesel engine |
| Emission Norms | BS IV with SCR |
| Maximum Power | 165 kW (221 HP) @ 2400 rpm |
| Maximum Torque | 800 Nm @ 1400 - 2100 rpm |
| Clutch | 15” RDC with Booster |
| Transmission | Automated Manual Transmission |
| Front Suspension | Air |
| Rear Suspension | Air |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | Yes, Engine Direct driven |
| Electricals | 24V, 150Ah Battery, 100A Alternator |
| Tyres | 295/80 R 22.5 tubeless radials |
| Fuel tank | 165 Litres |
| Engine model | H Series 6 cylinder CNG Engine |
| Emission Norms | BS IV with EGC |
| Maximum Power | 132 kW (177 HP) @ 2400 rpm |
| Maximum Torque | 615 Nm @ 1600 - 1800 rpm |
| Clutch | NA |
| Transmission | Automatic Transmission |
| Front Suspension | Air |
| Rear Suspension | Air |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | No |
| Electricals | 24V, 150Ah Battery, 100A Alternator |
| Tyres | 295/80 R 22.5 – tubeless radials |
| CNG Capacity | 720 Water Litre capacity |
| Engine model | H Series 4 cylinder CRS diesel engine |
| Emission Norms | BS IV with SCR |
| Maximum Power | 95 kW (127 HP) @ 2400 rpm |
| Maximum Torque | 450 Nm @ 1400 - 1900 rpm |
| Clutch | 330 mm Hydraulic clutch actuation with booster |
| Transmission | 5 Speed Synchromesh gearbox |
| Front Suspension | Parabolic leaf Spring |
| Rear Suspension | Parabolic leaf Spring |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| Electricals | 24V, 150Ah Battery, 120A Alternator |
| Tyres | 235 R 17.5 – tubeless radials |
| Fuel tank | 140 Litres |
| Engine model | H Series 6 cylinder CNG Engine |
| Emission Norms | BS IV with EGC |
| Maximum Power | 132 kW (177 HP) @ 2400 rpm |
| Maximum Torque | 615 Nm @ 1600 - 1800 rpm |
| Clutch | NA |
| Transmission | Automatic Transmission |
| Front Suspension | Air |
| Rear Suspension | Air |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | NA |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | No |
| Electricals | 24V, 150Ah Battery, 100A Alternator |
| Tyres | 295/80 R 22.5 – tubeless radials |
| CNG Capacity | 720 Water Litre capacity |
| Engine model | H Series 6 cylinder CNG Engine | |
| Emission Norms | BS IV with EGC | |
| Maximum Power | 92 kW (123 HP) @ 2400 rpm | 161 kW (216 HP) @ 2400 rpm |
| Maximum Torque | 416 Nm @ 1200 - 1400 rpm | 700 Nm @ 1200 - 1400 rpm |
| Clutch | 14” Axial clutch with Mechanical Actuation | 15” RDC with Booster |
| Transmission | 5 Speed Synchromesh gearbox | 6 Speed Synchromesh overdrive gearbox |
| Front Suspension | Rubber ended leaf Spring | |
| Rear Suspension | Air | |
| Steering | Integral power steering | |
| Brakes | Full air dual line with ABS | |
| Auxiliary brake | NA | |
| Parking brakes | Flick Valve operated hand brake on rear wheel only | |
| AC option | No | Yes, Engine direct driven |
| Electricals | 24V, 150Ah Battery, 55A Alternator | 24V, 150Ah Battery, 85A Alternator |
| Tyres | 10R20 - Radial | 295/80 R 22.5 – tubeless radials |
| CNG Capacity | 710 Water Litre capacity | 850 Water Litre capacity |
| Engine model | H Series 6 cylinder CRS diesel engine |
| Emission Norms | BS IV with SCR |
| Maximum Power | 165 kW (221 HP) @ 2400 rpm |
| Maximum Torque | 800 Nm @ 1400 - 2100 rpm |
| Clutch | 15” RDC with Booster |
| Transmission | Automated Manual Transmission |
| Front Suspension | Rubber ended leaf spring |
| Rear Suspension | Air |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | - |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | Yes, Engine Direct driven |
| Electricals | 24V, 150Ah Battery, 100A Alternator |
| Tyres | 295/80 R 22.5 tubeless radials |
| Fuel tank | 165 Litres |
| Engine model | H Series 6 cylinder CRS diesel engine |
| Emission Norms | BS IV with SCR |
| Maximum Power | 165 kW (221 HP) @ 2400 rpm |
| Maximum Torque | 800 Nm @ 1400 - 2100 rpm |
| Clutch | - |
| Transmission | Automatic Transmission |
| Front Suspension | Air |
| Rear Suspension | Air |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | Front Disc brake (Optional) |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | Yes, Engine Direct driven |
| Electricals | 24V, 100Ah Battery, 100A Alternator |
| Tyres | 295/80 R 22.5 tubeless radials |
| Fuel tank | 200 Litres |
.jpg)
